Heavy Duty Mixing Bowl Container Wash Frame

SYSPAL's heavy duty wash frames are specifically designed for use with bulk distribution tanks, mixing bowls & other large handling containers in order to allow for safe and effective manual wash down applications.

Manufactured in 304 grade stainless steel and hygienically designed in order to meet the demands of today’s food factory wash-room environment.

Use of single and double wash frame units remove the requirement for manual handling operations when cleaning and prevent damage sustained to tanks & containers during manual washing operations.

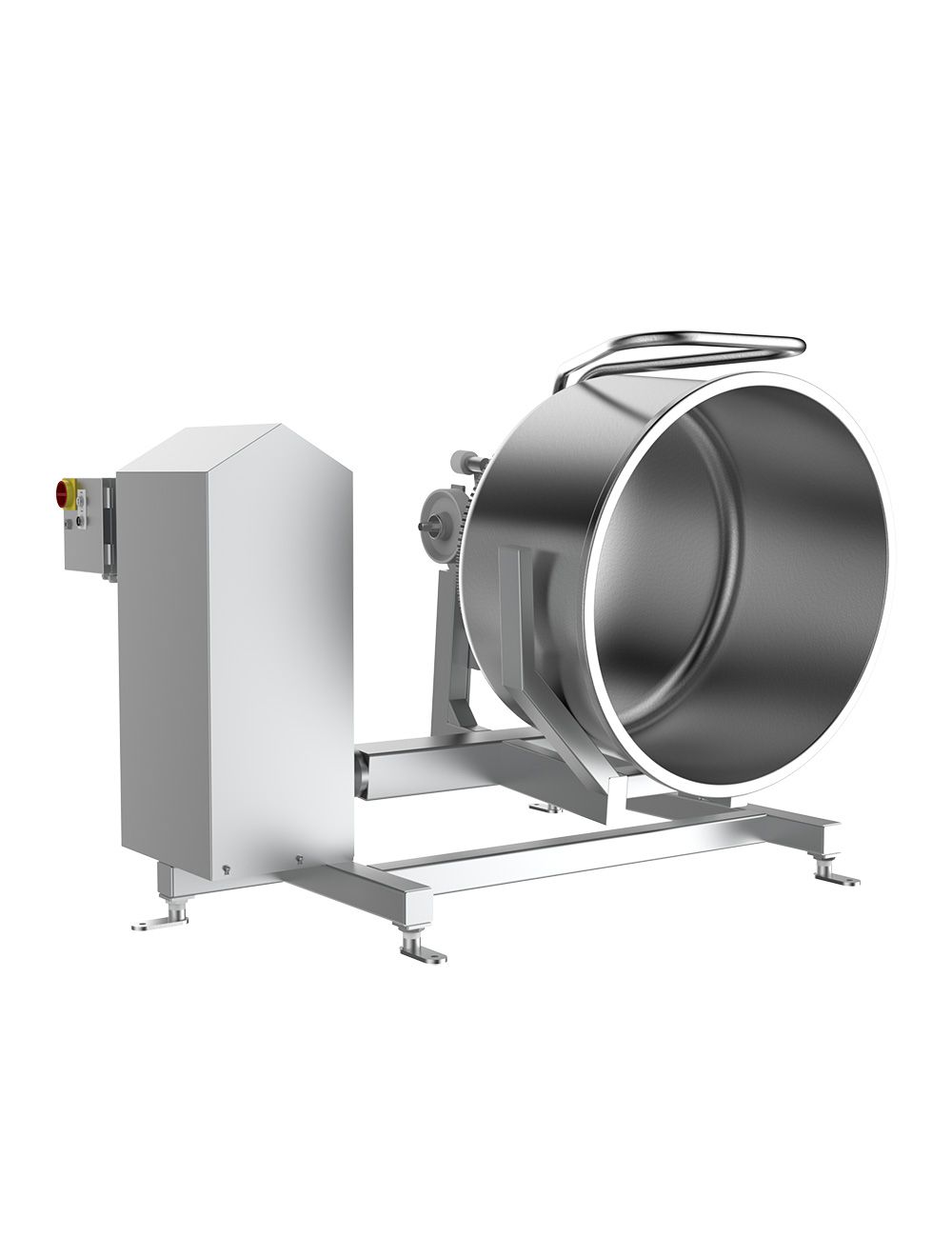

The carriage arm rotates via a direct drive motor & lifts the containers clear from the wash room floor. This enables operative access to all sides of the bin & holding in position at 10º from horizontal allows residual wash water to drain away.

Lifting carriage arms can be designed and manufactured to accommodate a wide range of bowls, vessels, tanks and other food industry container types.

• Tipping angle range: 100° max from lowered position - 10° from horizontal position
• Max tipping height: 365mm
• Safe working load: Up to 1000kg
