Sanitising Conveyor with Extended Belt

Sanitising Conveyor - Standard Long Conveyor

Sanitising Conveyor - Standard Short

  • Provides the facility to convey ingredients, utensils & equipment from low care to high care environment while meeting the requirements of the BRC Global Standards for Food Safety
  • Hygienic robust design with good access for routine hygiene cleaning and maintenance procedures
  • Stainless steel construction
  • Products such as bagged food, cans, tubs, blocks of cheese, film reels, etc are sanitised before entering a high care food environment for further process.
  • Certain optional feature components can be added at a later stage to suit standard panel functions.
  • Infeed sensor starts spray bar and conveyor when product passes c/w variable timer & switch off function to provide energy saving facility.
  • Different belt options available (See images)
  • See Technical Animation and contact us on 01952 883188 for further information.
£0.00
SKU CODE: Sanitiser

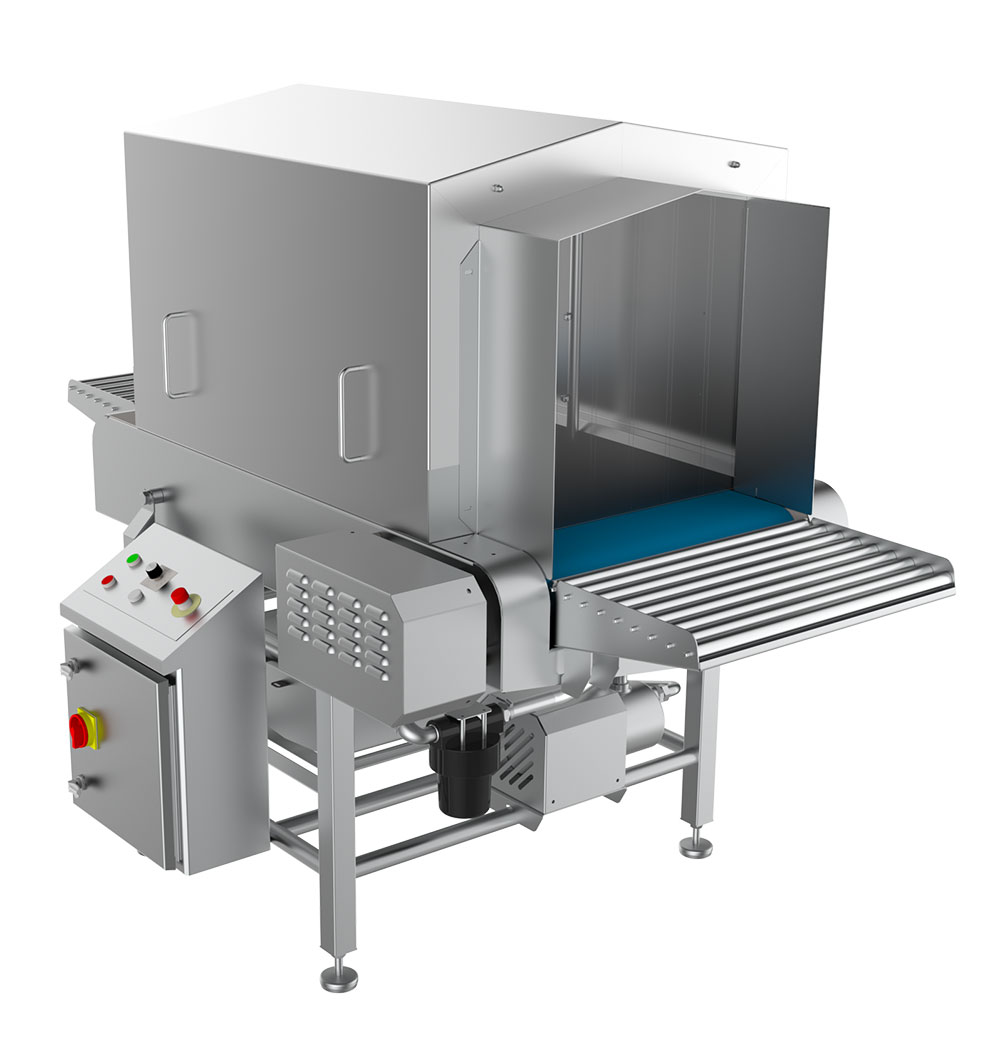

Sanitising conveyor for taking product from low-care to high-care

  • Auto fill and full recirculation system
  • Lift off stainless steel hood for easy cleaning
  • Dosatron chemical dosing unit with adjustable dose rate of 0.2% - 2.0%
  • All legs complete with adjustable feet and bolt down facility
  • Infeed product sensor for operation start
  • Variable conveyor drive -10 mtrs/min @50Hz
  • Side mounted IP67 rated control panel
  • Removable sanitising solution tank with recirculation mesh filter, drain valve and overflow facility

Options Available:

  • Infeed and outfeed tables with perforated drain facility back to tank
  • Side guides through tunnel hood
  • Sanitising solution can be fed direct from customers sanitiser main tank to solenoid valve
  • Infeed and outfeed product sensors
  • 200 micron filter in addition to standard 50 micron filter
  • Straight through belt for small products and difficult to handle products
  • Twin belt to suit high care to low care segregation
  • Reversing belt type (straight through belt only) to allow product to be returned from high care
  • Panel controls can be internally mounted to prevent unauthorised adjustment
